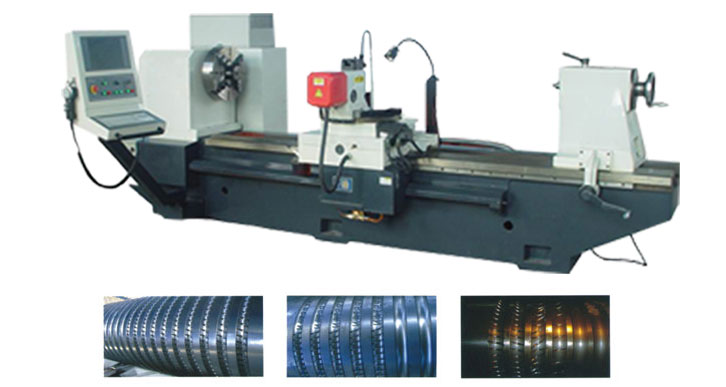

CNC Roll Notching & Name Marking Machine
Model : XK 9350D

Features

• Designed to Get Swivel Function And Fly Cutting Function In One Unit.
• Suitable for Casting Rolls and Tungsten Carbide Roll Rings.
• Sturdy and rigid machine construction.
• One Machine For Two Jobs : Roll Notching & Name Marking.
• Fully Automatic Notching From First Grove to Last Groove.
• Equipped With 'Siemens' High Performance 4-Axis CNC System.
• System Can Continue Job From Pause After Tool Changed During Process.
• High Precision Ball Screw To Ensure Precision Transmission For Longitudinal.
• Precision Rolling Arc Guide-Way Provide Swivel Head With Fine Position Support.
• Notching on One groove can be done is about 15 - 20 Minutes.
• Name Marking on One groove can be done is about 10 Minutes.

Technical Specifications

Specifications	Model : XK 9350D
Max. Diameter Of Processed Roller	550mm
Max. Length Of Processed Roll	2500mm
Notching for Re-Bar Diameter	06mm - 050mm
Notching per Rolls	Free Choice
Omitting Ribs	Free Choice
Min. Feed Rate	0.001mm / deg.
Spindle Speed Of Flying Cutter Head (Notching)	0-600 RPM
Spindle Speed Of Milling Head (Marking)	0 — 3000 RPM
Head Stock Spindle Bore	MT#6
Head Stock Chuck diameter (4 Jaw Chuck Diameter)	500mm
CNC 4-Axis Control System	Siemens CNC Controller
Motors & Drives	AC Servo Motors & Drives
Overall Dimension (L x W x H) (Approx)	4000 X 1500 X 1900mm
Machine Weight (Approx)	4700 K.G.
